Navigational Sounder DS2008

10 inch LCD, meeting IMO rules

Model:
DS2008
Brand:
Ninglu
DEPTH RANGE:
0.4m ~ 800m
FREQUENCY:
200 kHz or 50 kHz
CHANNEL:
1 channel or 2 channels

Availability:

Quantity:



Inquire Add to Basket

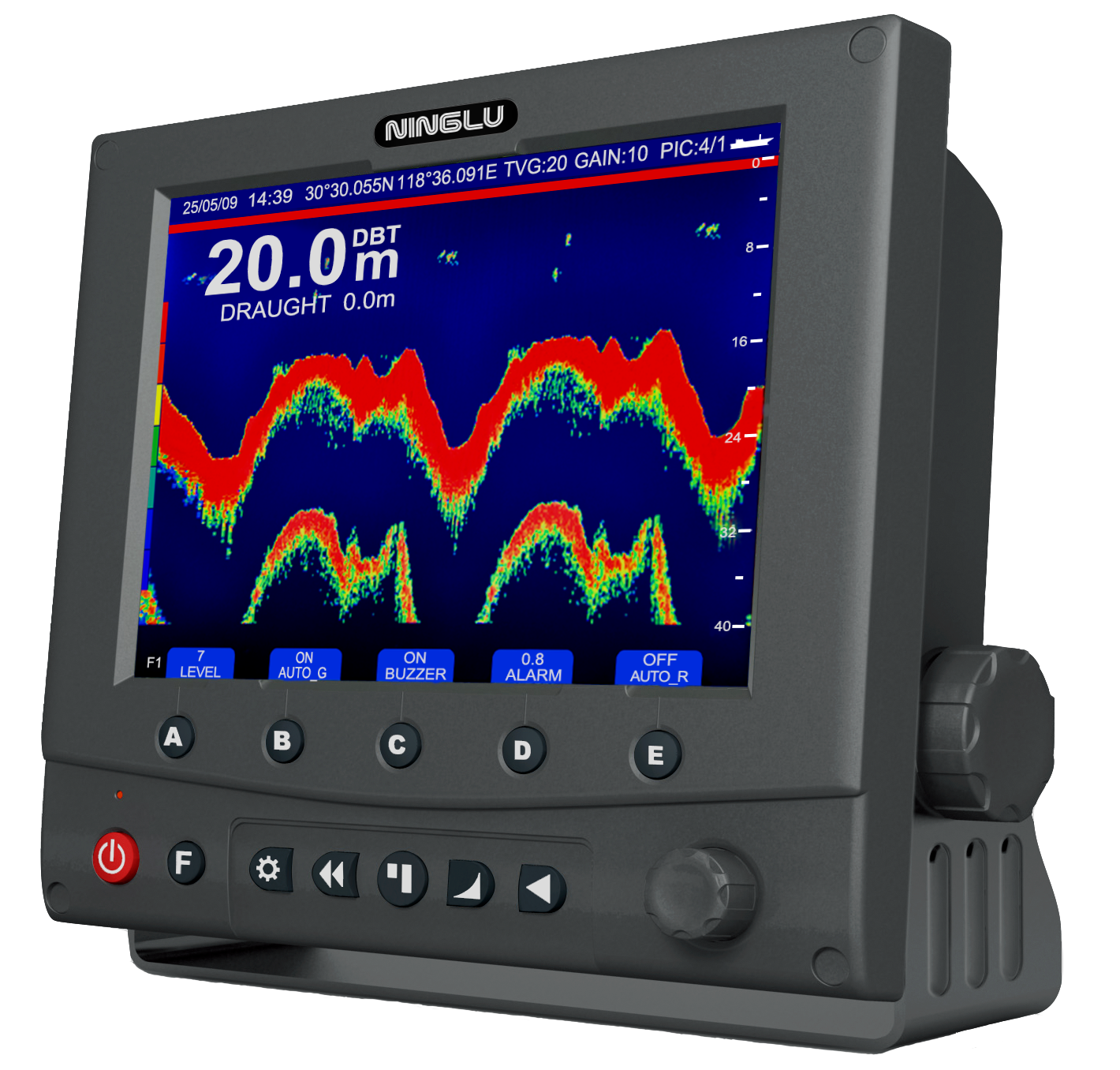

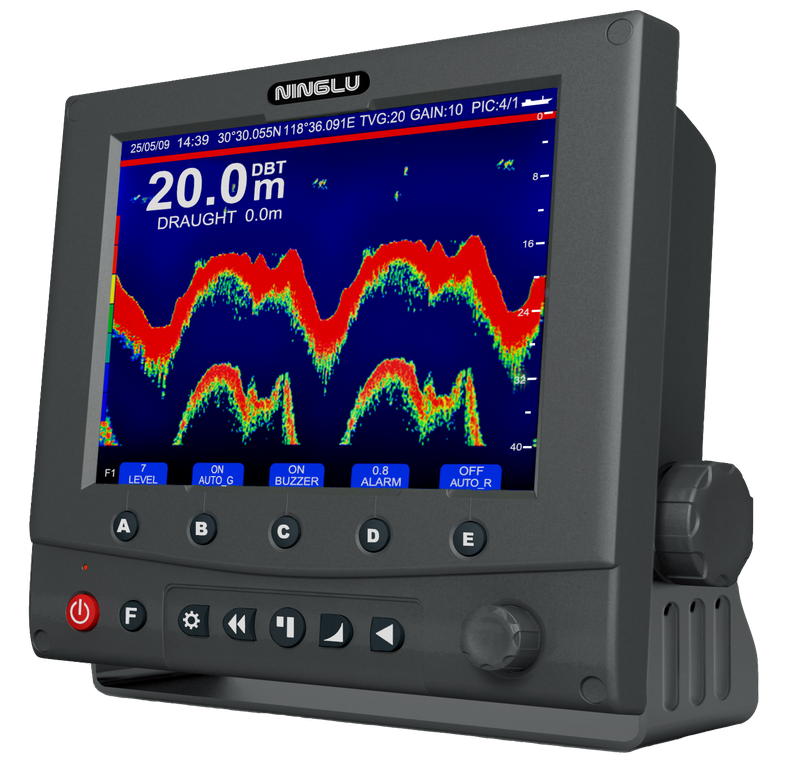

DS2008, navigation echo sounder with a 10.4 inch, high resolution graphic LCD, continuously dispaly echo graphics on the LCD along with complete navigational details.

External connectors are provided for printer, and NMEA in/output.

DS2008 contains history memory that stores depth, time and other available navigation data continuously for the preceding 20 hours.

Dual channels echo sounder display DS2008S and DS2008H can display depth at the FORE and AFT positions simultaneously.

Features

▶ 10.4 inch color TFT LCD

▶ 50 kHz / 200 kHz transducer

▶ 20 hours history data record

▶ NMEA0183 Depth data output

▶ Printer interface forDPU-414 printer to print out date/time/location/depth information

▶ Compatible with most echo sounder transducer in the market

(inquire us more for replacment project)

Operation and Installation Manual Download

NLT-DS2008-SSEN DS2008 10 inch TFT Navigationl Sounder Operation & Installation Manual V161122.pdf

CCS Approval Certificate Download

https://www.ninglutech.com/phoenix/admin/download?fileId=bPApfKvuUaqj&dp=GvUApKfKKUAU

Echo Sounder navigation sounder

Related Products

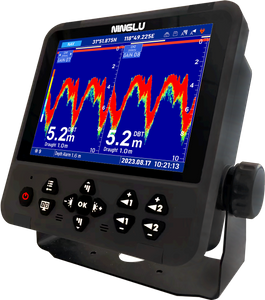

Navigational Sounder DS228

Navigational Echo Sounders

Floor 3, Building 1, No 1 ZiJin 2 Road, Moling Street, Jiangning Area, 210022, Nanjing, Jiangsu, China

Email Us

sales@ninglutech.com
support@ninglutech.com

Call Us On

(+86)-150-9431-9396
(Monday to Friday 9:00 - 17:30)

We focus on the field of marine navigation equipment, adhere to the steady operation, continuous innovation, with international standards, cutting-edge technology, advanced craft, and excellent quality, to create a leading brand in China.

View More >

PRODUCTS CATEGORY

LATEST NEWS

Get latest updates and offers.

http://weibo.com

Friendship Links：www.skipper.no

Leave a Message

ITEM	SPECIFICATIONS	ITEM	SPECIFICATIONS
Display	10.4” color LCD with adjustable backlight	Auto Range	Yes
Pixel Number	640×480	Alarm	Shallow water, Power drop
Power Supply	DC24V (18~33V)	Power Alarm	Power lost alarm
Dimension	264(H)×270(W)×93(D)mm	Alarm Media	Buzzer, Flashing
Model	DS2008: 200kHz only × 1 channel	Time Scale	30s interval time bar on LCD
	DS2008: 50kHz only × 1 channel	Picture Speed	6 steps plus freeze
	DS2008H: 200kHz × 2 channels	NMEA Outputs	NMEA0183 (DPT)
	DS2008S: 50&200kHz, 2 channels	NMEA Input	GPS Position (GGA)
Power Output	DS2008 & DS2008S: 500W	Echo color	7 colors
Power Output	DS2008H: 300W	Language	English, Chinese
Mounting Dimensions	261 × 247 mm	Protection	Display IP23(IEC60945)
Mounting Dimensions	261 × 247 mm	Mounting	Desk/Ceiling/Flush
Depth Range	0.4m to 800m	Options	Depth repeater IR261
Accuracy	Error less ±1.0% of range	Options	Printer DPU-414
History Storing	20 hours history data	Classification	Made to IMO performance standard

ITEM	SPECIFICATIONS	ITEM	SPECIFICATIONS
Display	10.4” color LCD with adjustable backlight	Auto Range	Yes
Pixel Number	640×480	Alarm	Shallow water, Power drop
Power Supply	DC24V (18~33V)	Power Alarm	Power lost alarm
Dimension	264(H)×270(W)×93(D)mm	Alarm Media	Buzzer, Flashing
Model	DS2008: 200kHz only × 1 channel	Time Scale	30s interval time bar on LCD
	DS2008: 50kHz only × 1 channel	Picture Speed	6 steps plus freeze
	DS2008H: 200kHz × 2 channels	NMEA Outputs	NMEA0183 (DPT)
	DS2008S: 50&200kHz, 2 channels	NMEA Input	GPS Position (GGA)
Power Output	DS2008 & DS2008S: 500W	Echo color	7 colors
Power Output	DS2008H: 300W	Language	English, Chinese
Mounting Dimensions	261 × 247 mm	Protection	Display IP23(IEC60945)
Mounting Dimensions	261 × 247 mm	Mounting	Desk/Ceiling/Flush
Depth Range	0.4m to 800m	Options	Depth repeater IR261
Accuracy	Error less ±1.0% of range	Options	Printer DPU-414
History Storing	20 hours history data	Classification	Made to IMO performance standard
